Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Product Categories
Sussman Machinery(Wuxi) Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Brand Name : Sussman

Model Number : SM-RP

Certification : CE ISO SGS

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 65 days after deposit

Packaging Details : Standard packing

Type : Twin Ribs Corrugated Roof Sheet Roll Forming Machine

Thickness : 0.3mm-0.8mm

Working Speed : 10-12 meters/minute

Motor Power : 7.5KW

Contact Now

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine

These low-maintenance, aluminum roofing and siding panels offer an attractive appearance and extra durability, complementing your agricultural structure for years to come. To see if Twin Rib panels are the right fit for your agricultural application, get in touch with us!

An exposed fastener panel made with 100% recyclable aluminum, Twin Rib can be used in a range of agricultural applications, including animal confinement.

Technical parameter:

Number Items UnitType RF-DL
1 Steel Thickness mm 0.12-0.3mm 0.3-0.8mm PPGI and GI
2 Forming line Speed m/min 10-12
3 Roller stands stand About 20-22stands
4 Roller Material mm #Gcr15, coated with hard chrome quenching
Shaft material and diameter mm Ф76 45# steel, coated with chrome
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 4
7 Hydraulic pressure Mpa 12
8 Power Supply 415V, 50HZ,3 phase
9 Tolerance mm +/-1.5
10 Material of cutting Cr12mov HRC60-62
11 Control system PLC with touch screen
12 Machine net weight T 8
13 Out size mm 10000*1300*1000

Machine List

Machine list 5 tons hydraulic de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Safety cover 1 set
Spare parts 1 set

working flow

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Profile Drawing

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Machine Shows

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

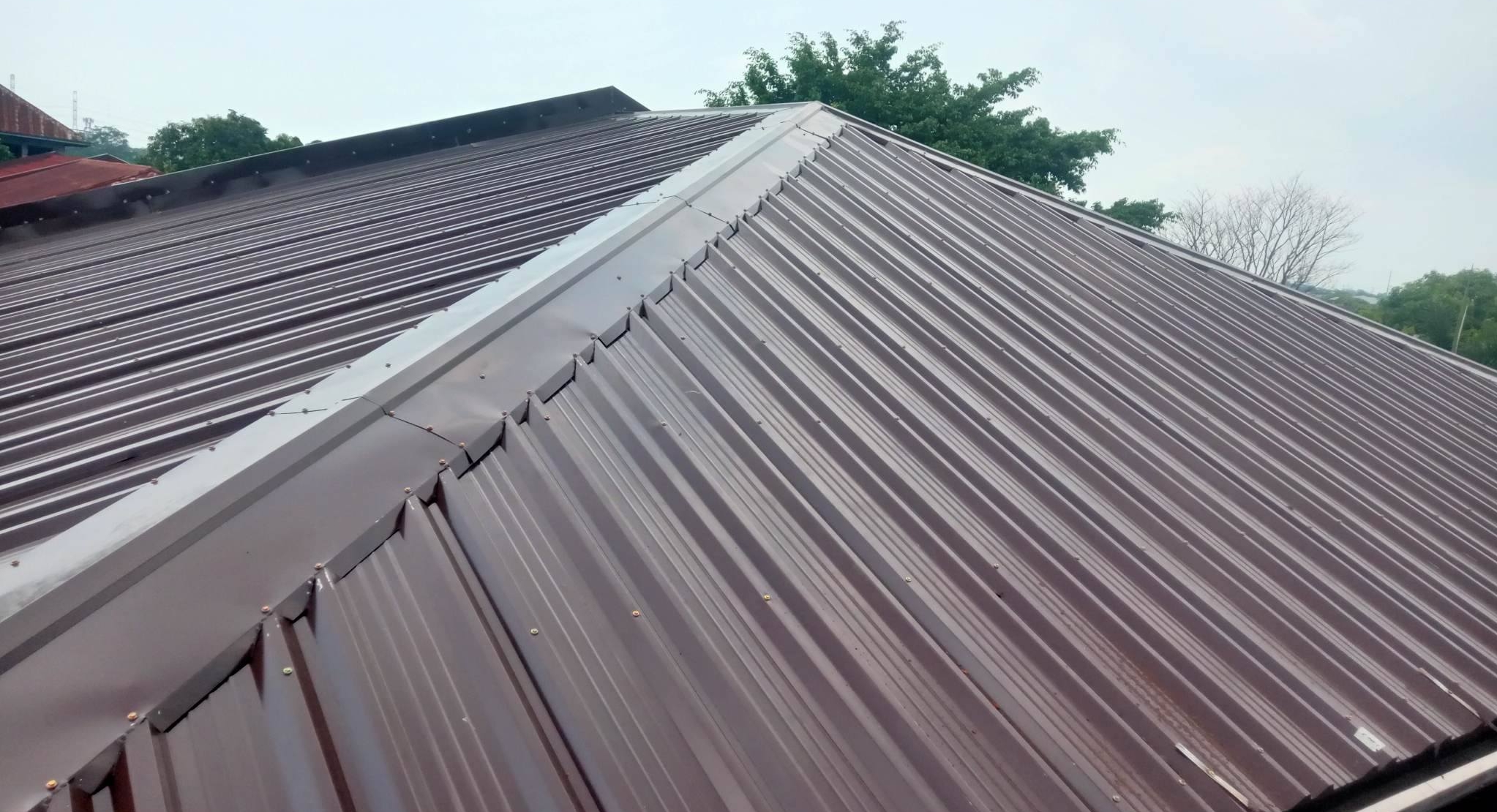

Application:

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine

Zincalum 5V Twin Ribs Roof Sheet Roll Forming Machine Roofing Tile Panel Making Machine
