50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 75 days after deposit

Packaging Details : Film and steel

Material : 0.4-1.2mm Galvanized steel, high-tensile steel

Control system : PLC Siemens with touch screen

Machine speed : about 50-120m/min

Cutting material : Cr12 Mov with quenched

Main power : 15KW

Roller material : SKD11

Contact Now

50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine

An Omega roll forming machine is a specialized piece of industrial equipment designed to produce Omega profiles from metal sheets. Omega profiles, often used in construction and infrastructure projects, are characterized by their Ω (omega) shape, providing excellent strength and versatility for various applications.


1. Technical Parameter

Stud Track Roll Forming Machine

No.

Item

Specification

1

Suitable material

Type:Galvanized Coil, PPGI, Carbon steel Coil

Thickness(mm):0.6-0.9

Yield strength: 350 - 550MPa

2

Nominal forming speed(m/min)

50-120m/min

3

Forming station

14

4

Decoiler

Manual decoiler

5

Main machine motor

30KW Famous China brand

6

PLC brand

Delta

7

Inverter brand

Yaskawa

8

Driving system

Gearbox drive

9

Rollers’ materail

Steel #45

10

Station structure

Cast iron

12

Cutting system

Servo following cutting

13

Power supply requirement

380V 50HZ or customized

14

Machine color

Industrial blue or customized


2. Machine Components

3T manual decoiler or automatic decoiler 1 set
Hydraulic non stop cutting 1 set
Roll forming machine 1 set
Hydraulic station 1 set
Control box system 1 unit
Out tables 1 unit
Safety cover 1 unit
Tool box 1 package



3. Application

Omega furing channel is a hat-shaped corrosion-resistant framing component used to furr out masonry walls and ceiling assemblies.In concrete wall applications, furring channel is installed vertically to the wall surface using concrete nails or power-driven fasteners.

Gypsum panels are then screw-attached to the furring channels. In drop ceiling applications, furring channels can be attached directly to the underside of the building structure using Metal Furring Channel Clips, tie wire, screws or power-driven fasteners. Heavier gauge furring enables greater spans and loading capacity. 18- or 16- gauge furring is commonly used for purlins in exterior applications.

50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine


4. Profiles we can make

50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine

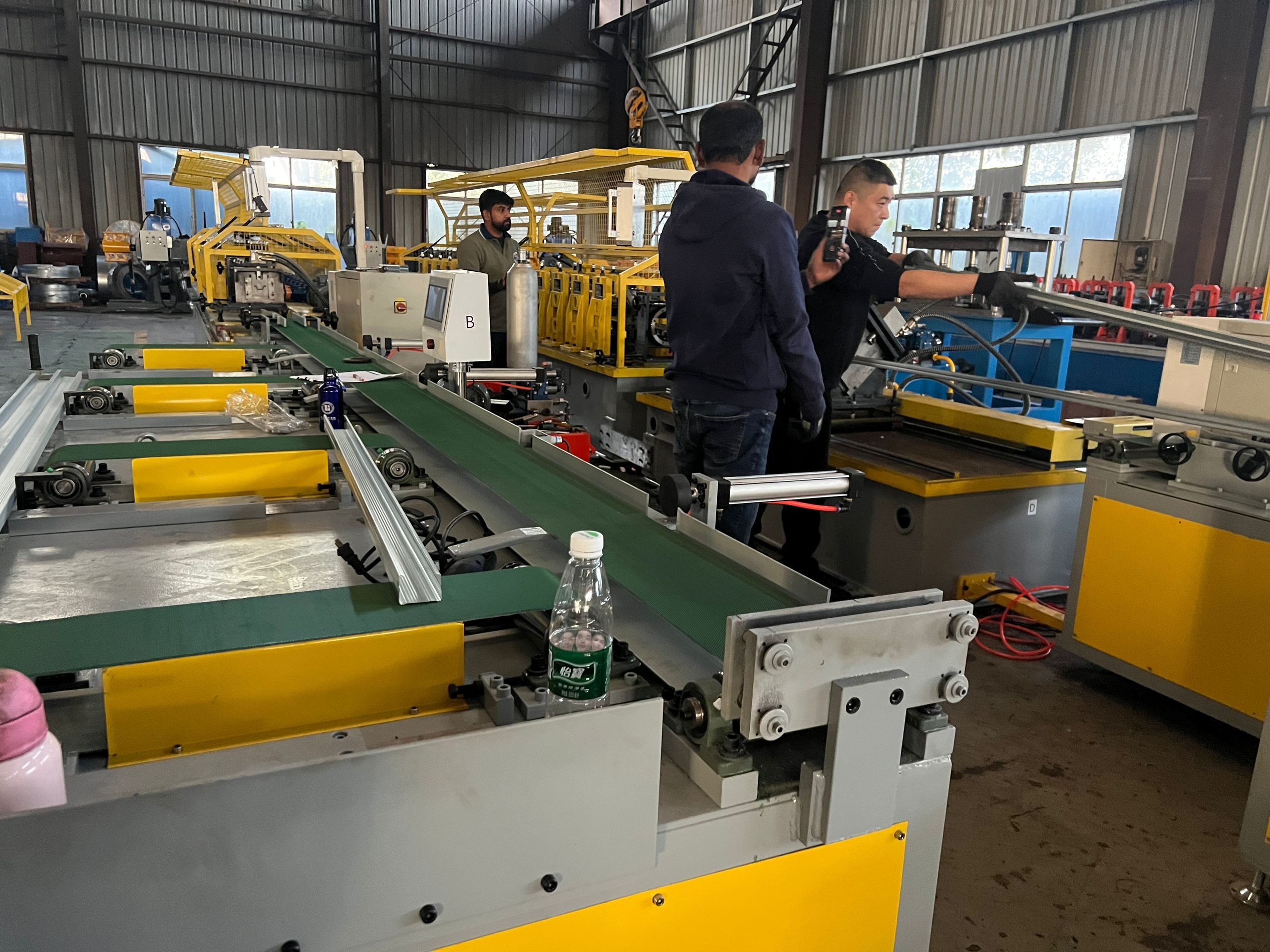

5.Machine picture
50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine

50-120m/Min 0.4-1.2mm Thickness Ceiling System Omega Profile Furring Channel Roll Forming Machine
